RScan 100

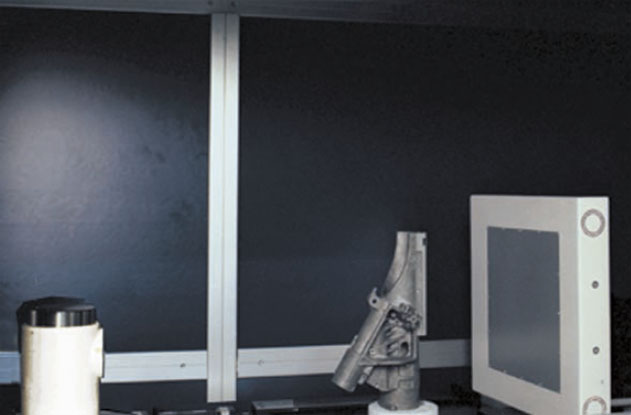

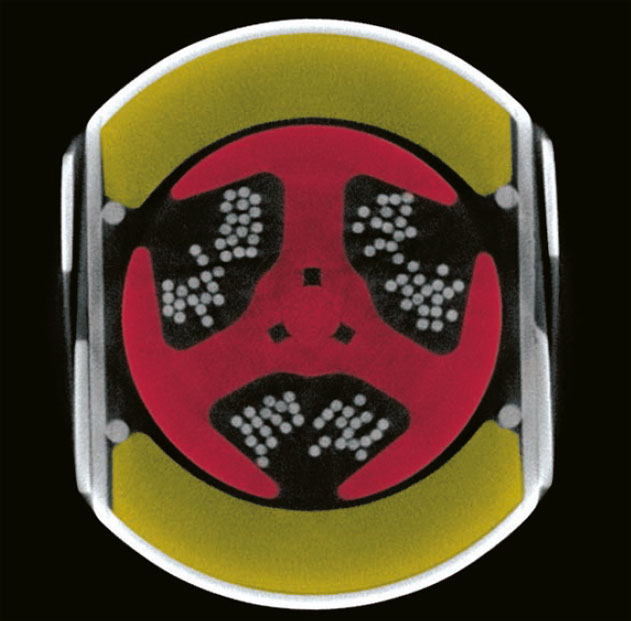

RScan 100 is a high quality compact system for radioscopy and 3D Computed Tomography. RayScan 100 has been designed for short scanning time in order to offer a high throughput especially for objects with a diameter up to 150 mm. RayScan 100 is equipped with a minifocus-X-ray-source. Thus details down to 0.1 mm can be detected.

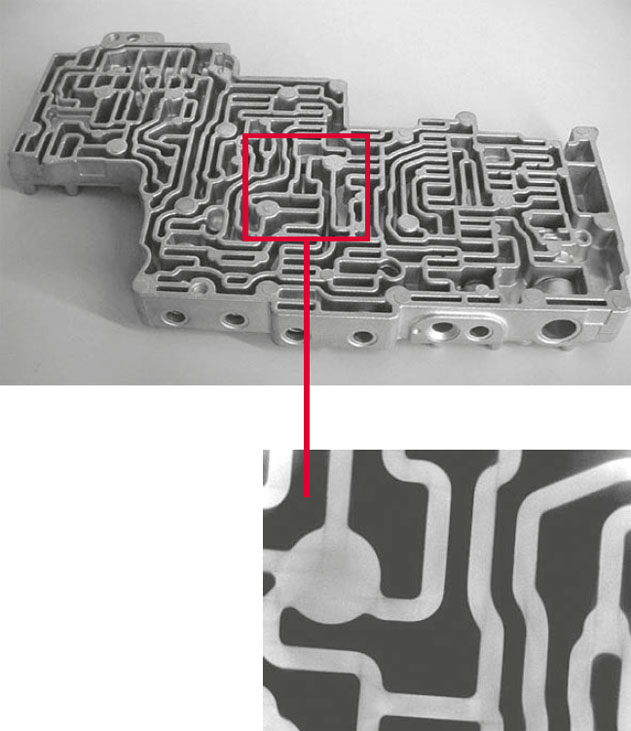

RayScan 100 E additionally provides an extended mode, which enables to overcome the limits of conventional CT. By using Region-of-Interest CT details or components of 0.1–0.3 mm even in large objects are detected. All hardware and software components are integrated in one intuitive user-friendly interface, which allows easy switching from one mode to the other.
Technical Data*
X-ray source (optional): Minifocus 20 - 160 kV (225 kV)
Focal spot: 0.4 mm
Max. size of objects ø/H: 700 mm / 1200 mm
Max. weight of objects: 60 kg
Detector´s active area (optional): 205 x 205 mm2 (410 x 410 mm2)
Number of detector-pixels (optional): 512 x 512 (1024 x 1024)
Digitising: 16 bit
Time for measurement incl. reconstruction: 1 - 15 min.
Resolution of detail: < 0.1 mm
Contrast: 1 %
Modes of operation: Radioscopy and 3D-CT, Optional mode Region of interest-CT
* Guide only, actual figures depend on material, maximum wall thickness, detector and source options.
Technical design and choice of components will be customised. Errors excepted.
Subject to change without notice.
