RScan 200

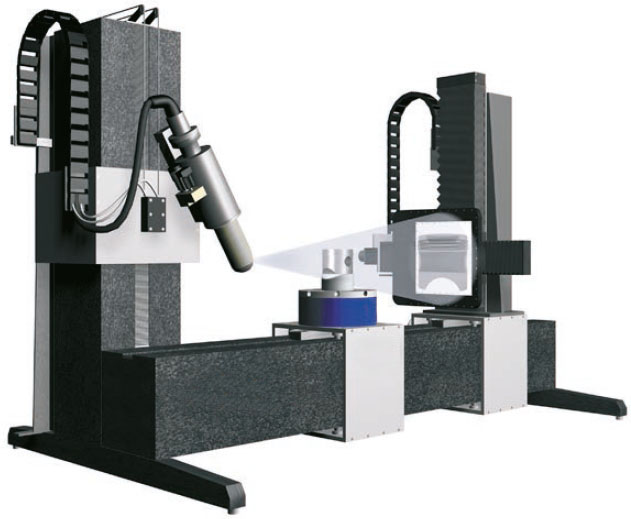

RScan 200 is a multi-purpose 3D Computed Tomography system for frequently changing applications with a wide variety of test objects and materials. Equipped with high precision mechanics and a microfocus X-ray source, RScan 200 has been optimised for extremely high spatial resolution, where details in a micrometer range in small parts can be detected. Due to its direct Cone Beam Tomography (3D-CT) the complete volume data are generated within some minutes.

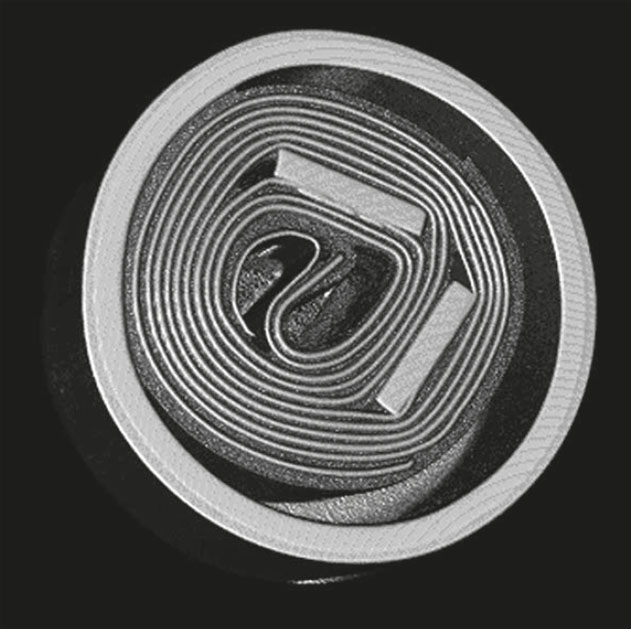

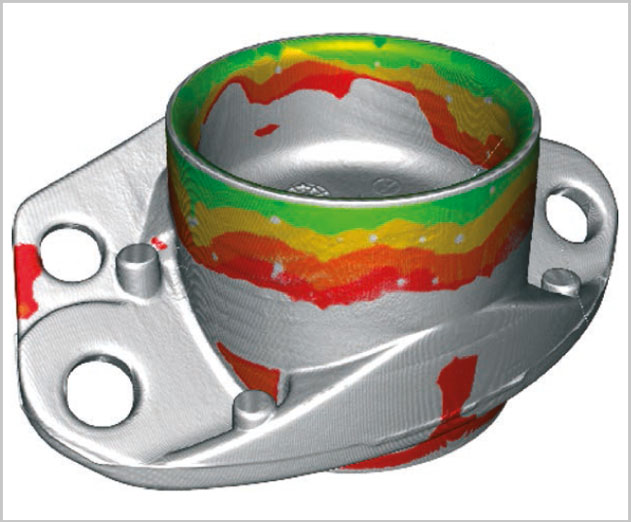

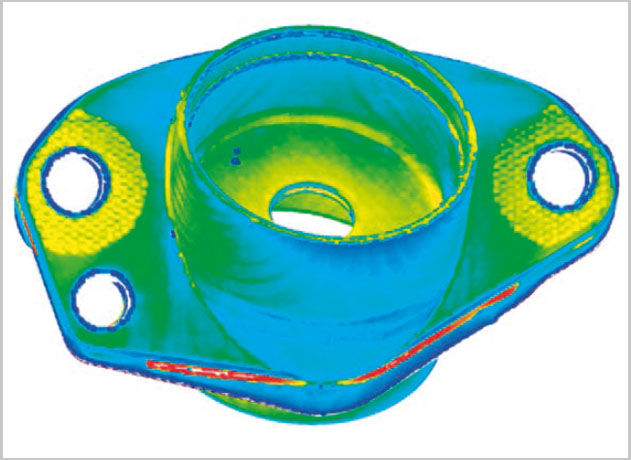

RayScan 200 is perfectly suitable for the development, optimisation and control of manufacturing processes. The analysis of volume data of the test object allows to draw a conclusion on the cause of faults of detected pores, cracks, inclusions and delaminations. Typical ranges of application are fault detection, dimensional measurement, comparison with CAD-data and reverse engineering.
Technical Data*
X-ray source Microfocus 10 - 230 kV (opt. 300 kV)
Focal spot 3 μm - 250 μm
Size of objects ø / H 1 - 600 mm / 1 - 1500 mm
Max. weight of objects 80 kg
Detector´s active area 410 x 410 mm2
Number of detector-pixels (optional) 2048 x 2048 (4096 x 4096)
Digitising 16 bit
Time for measurement incl. reconstruction 2 - 30 min.
Resolution of detail 1 μm
Contrast < 1 %
Modes of operation 3D-CT and Radioscopy
* Guide only, actual figures depend on material, maximum wall thickness, detector and source options.
Technical design and choice of components will be customised. Errors excepted.
Subject to change without notice.
