RScan 200 XE
RScan 200 XE is a multi-purpose 3D Computed Tomography system for frequently changing applications with a very wide variety of test objects. Equipped with a granite based high precision mechanic and a microfocus X-ray source, RayScan 200 XE has been optimised for high spatial resolution. Thus details in a micrometer range can be detected.

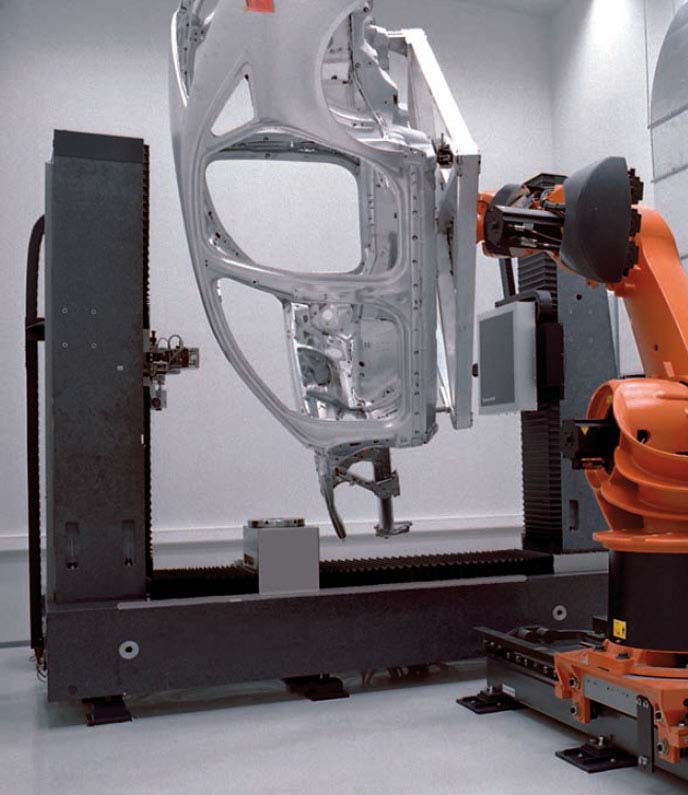

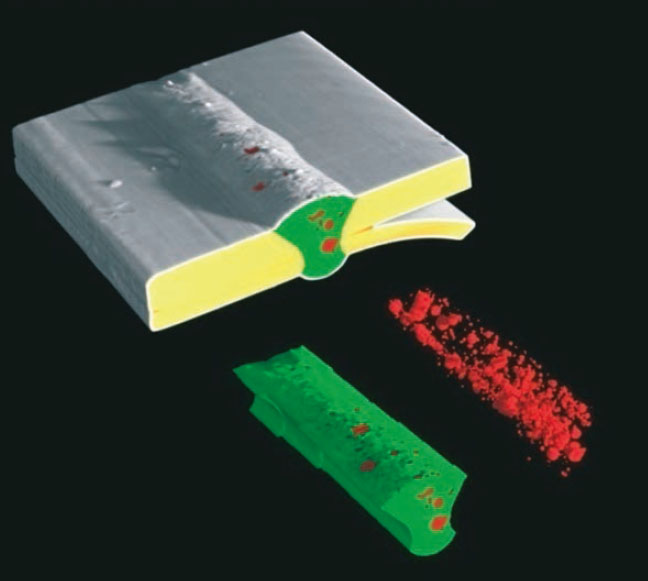

RScan 200 XE additionally provides extended operation modes, which enable to overcome the limits of conventional CT. By using Region-of-Interest CT or Transversal CT details of weldings, rivet joints or glued connections in car bodies or of large components from aero-space industry are detected with nearly any degree of detail. All hardware and software components are integrated in one intuitive user-friendly interface, which allows for easy switching from one mode to the other.
Technical Data*
X-ray source: Microfocus 10 - 230 kV (opt. 300 kV)
Focal spot: 3 μm - 250 μm
Size of objects ø/H: 1 - 2000 mm / 1 - 5200 mm
Max. weight of objects: 250 kg
Detector´s active area: 410 x 410 mm2
Number of detector-pixels (optional): 2048 x 2048 (4096 x 4096)
Digitising: 16 bit
Time for measurement incl. reconstruction: 2 - 30 min.
Resolution of detail: 1 μm
Contrast: < 1 %
Modes of operation: different ROI-CT, 3D-CT and Radioscopy
* Guide only, actual figures depend on material, maximum wall thickness, detector and source options.
Technical design and choice of components will be customised. Errors excepted.
Subject to change without notice.
